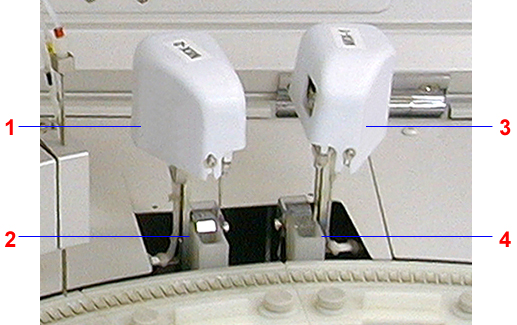

1 Mixer 1 (MIXR1)
2 Mixer 1 wash port
3 Mixer 2 (MIXR2)
4 Mixer 2 wash port
The reaction tray (RRV) mixers (MIXR1 and MIXR2) stir the contents (sample and reagent) of RRV cuvettes brought to their respective mixer positions.
Mixing is performed using a spinning, reciprocating, and vibrating paddle. Strong and weak stirring options are available.
Both mixers are located behind the reaction tray. MIXR1 mixes sample with reagent 1 (R1). MIXR2 mixes sample with reagent 2 (R2).
|
|
1 Mixer 1 (MIXR1) 2 Mixer 1 wash port 3 Mixer 2 (MIXR2) 4 Mixer 2 wash port
|
