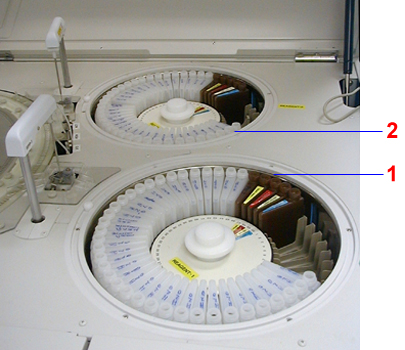

1 Reagent tray 1 (RTT1)
2 Reagent tray 2 (RTT2)
Reagent trays 1 and 2 (RTT1 and RTT2) contain reagents used for assays (positions 1-46) and the detergents used for daily washing and contamination prevention (positions 47-50). The reagent probes (RPP1 and RPP2) aspirate the required reagent and dispense it into the reaction tray (RRV) cuvettes for analysis.
Each tray has 50 positions. RTT1 contains the first reagent (R1); RTT2 contains the second reagent (R2).
You can use any reagent container for more than one test item; a test item may require more than one reagent container.
Each reagent tray has a barcode reader (RBC-1 and RBC-2).
|
|
1 Reagent tray 1 (RTT1) 2 Reagent tray 2 (RTT2) |
