Data Check 3: Item Rate Check

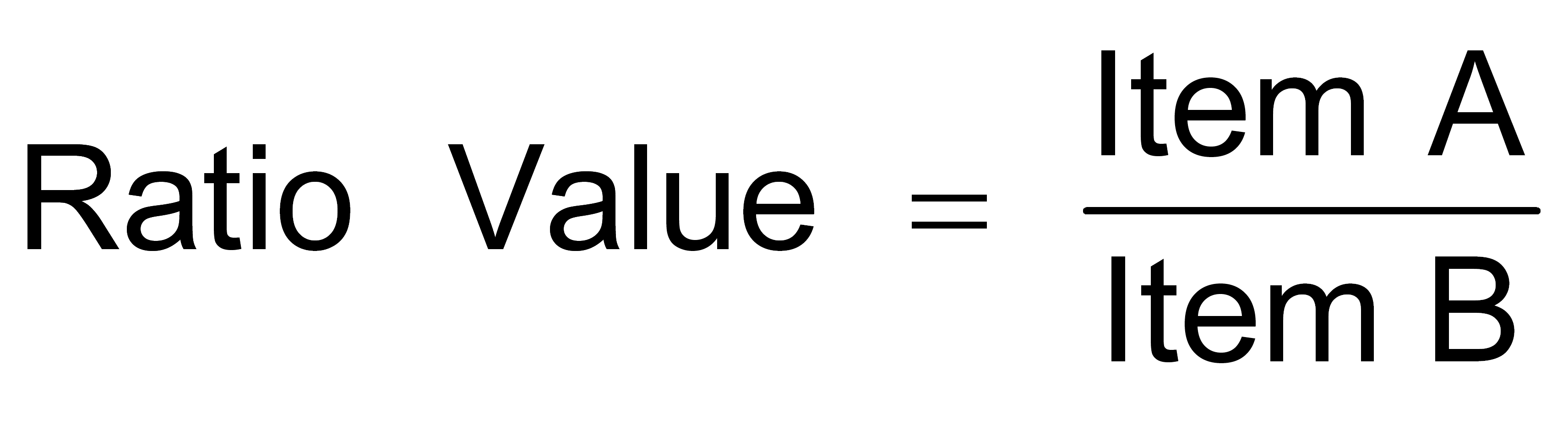

The Item Rate Check evaluates the ratio of any two tests that you select. The system can perform up to 20 ratio checks for each sample type. If a ratio value exceeds its Standard value range, the check fails and the sample results are not transmitted.


  1. In the Sample Type list, select the applicable sample type.

  2. Define each ratio check:

  1. In the Name box, enter the ratio check name (8 characters).

  2. In the Item A box, enter the item number for Item A (numerator).

  3. In the Item B box, enter the item number for Item B (denominator)

  4. In the Standard Value Range boxes for each ratio, enter the lower limit (left side) and the upper limit (right side).

  1. Select OK to close the dialog box.

  2. Select Save on the Data Clean Setting dialog box to store these changes.
