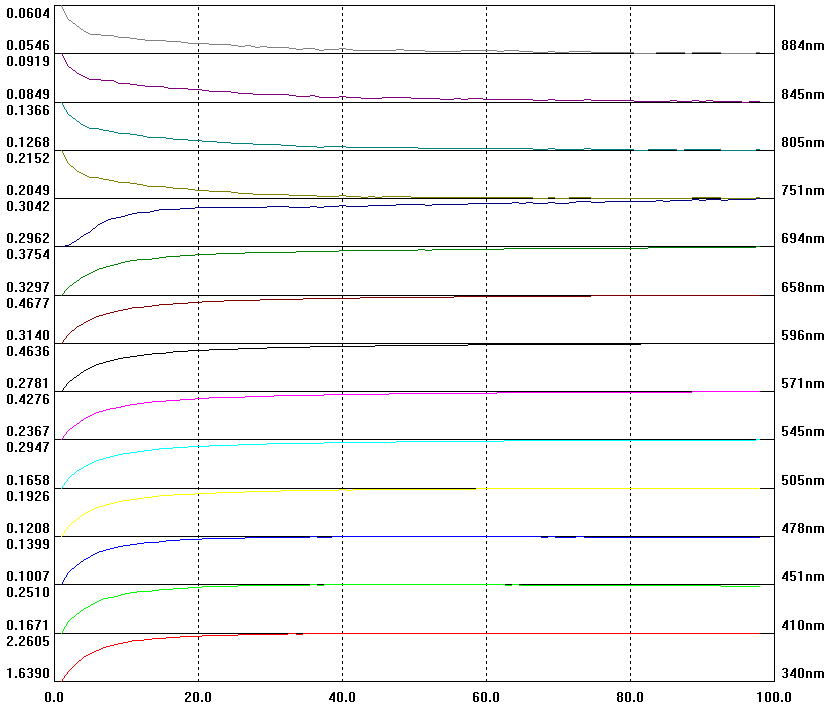

Example of a chart in the 14WL Reaction Process Monitor window

This example shows all 14 wavelengths in a tiled display.

X-axis: Detection points.

Y-axis: Each wavelength’s range represents high and low values.
