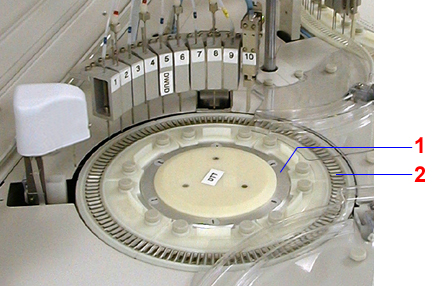

1 Dilution tray (DTT)
2 DTT cuvette
The sample-dilution probe (DPP) dispenses diluted samples into cuvettes in the dilution tray (DTT). Once the sample is in a DTT cuvette, it is stirred by the dilution mixer (DMIX), then aspirated by the sampling probe (SPP). After analysis, the cuvettes are washed by the dilution washer (DWUD).
The DTT contains 120 reusable cuvettes (6 sets of 20 cuvettes). The maximum sample volume for each cuvette is 300 mL.
|
|
1 Dilution tray (DTT) 2 DTT cuvette
|
